Seat Construction

Winter 2023

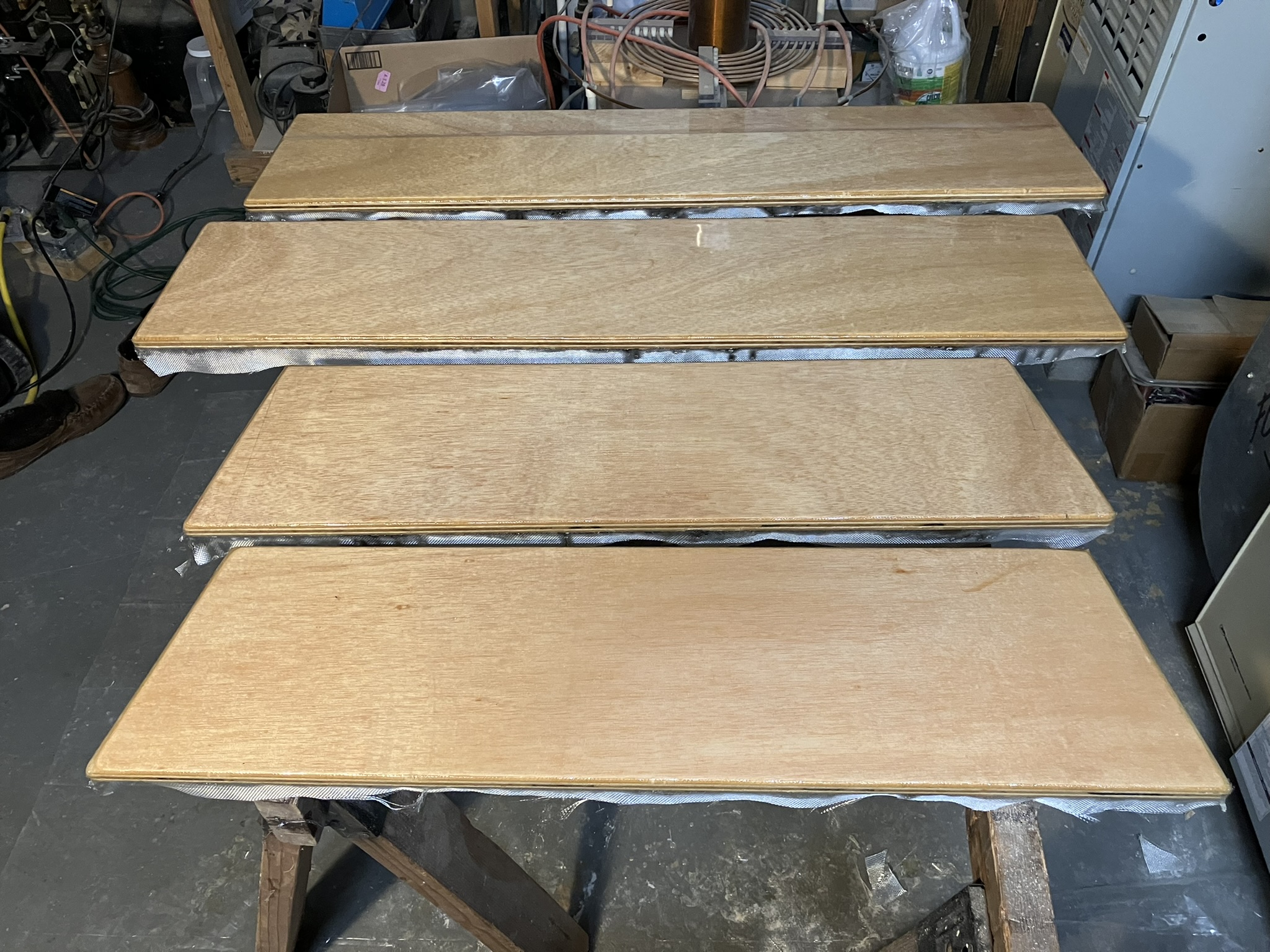

Seats Ready For Glass

Seats were cut to size from 3/4" Marine Plywood.

Edges were routed with 3/8" radius bit.

Surfaces sanded #80 grit.

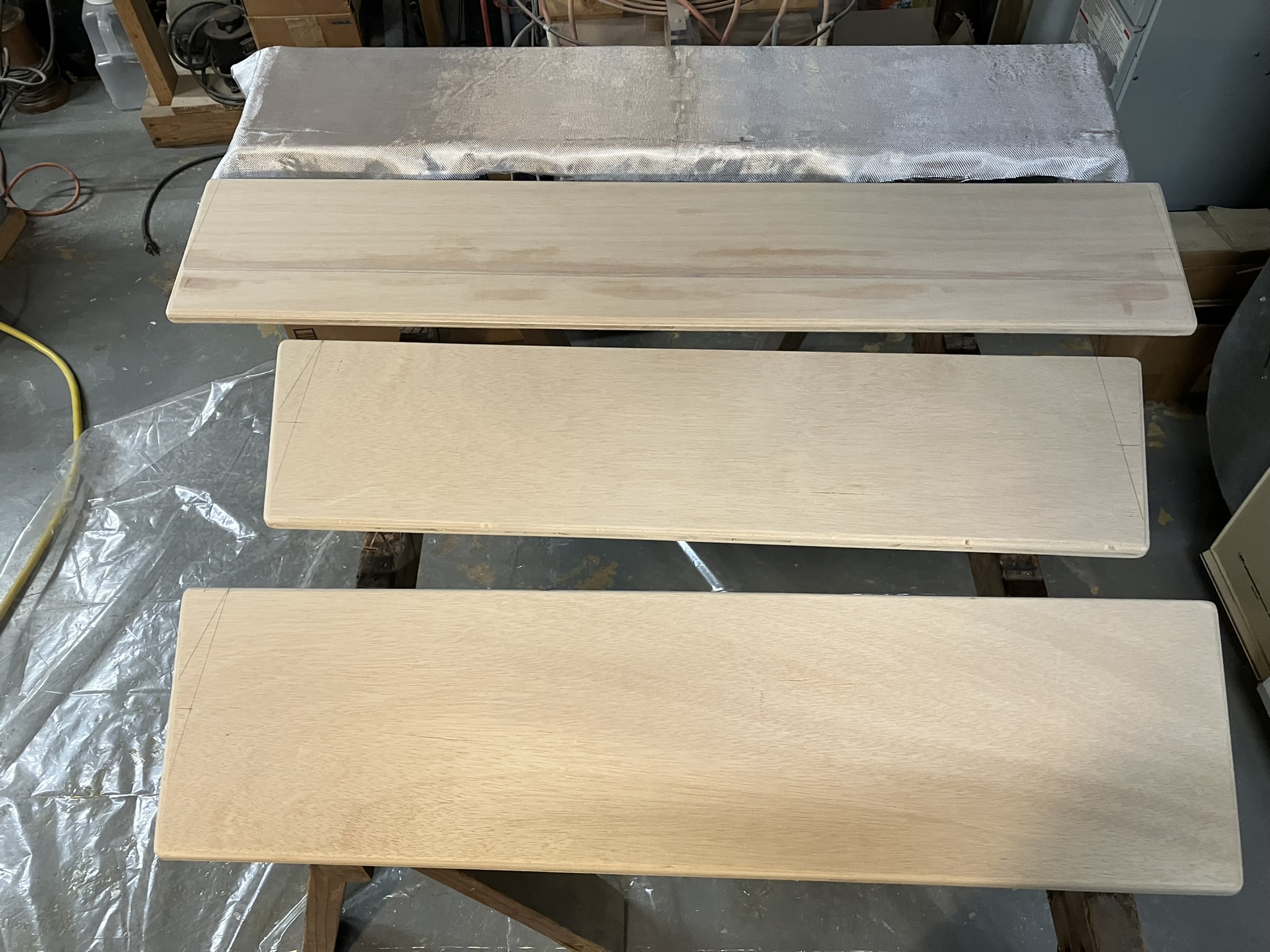

Note glass cloth layed-out on seat at top of frame.

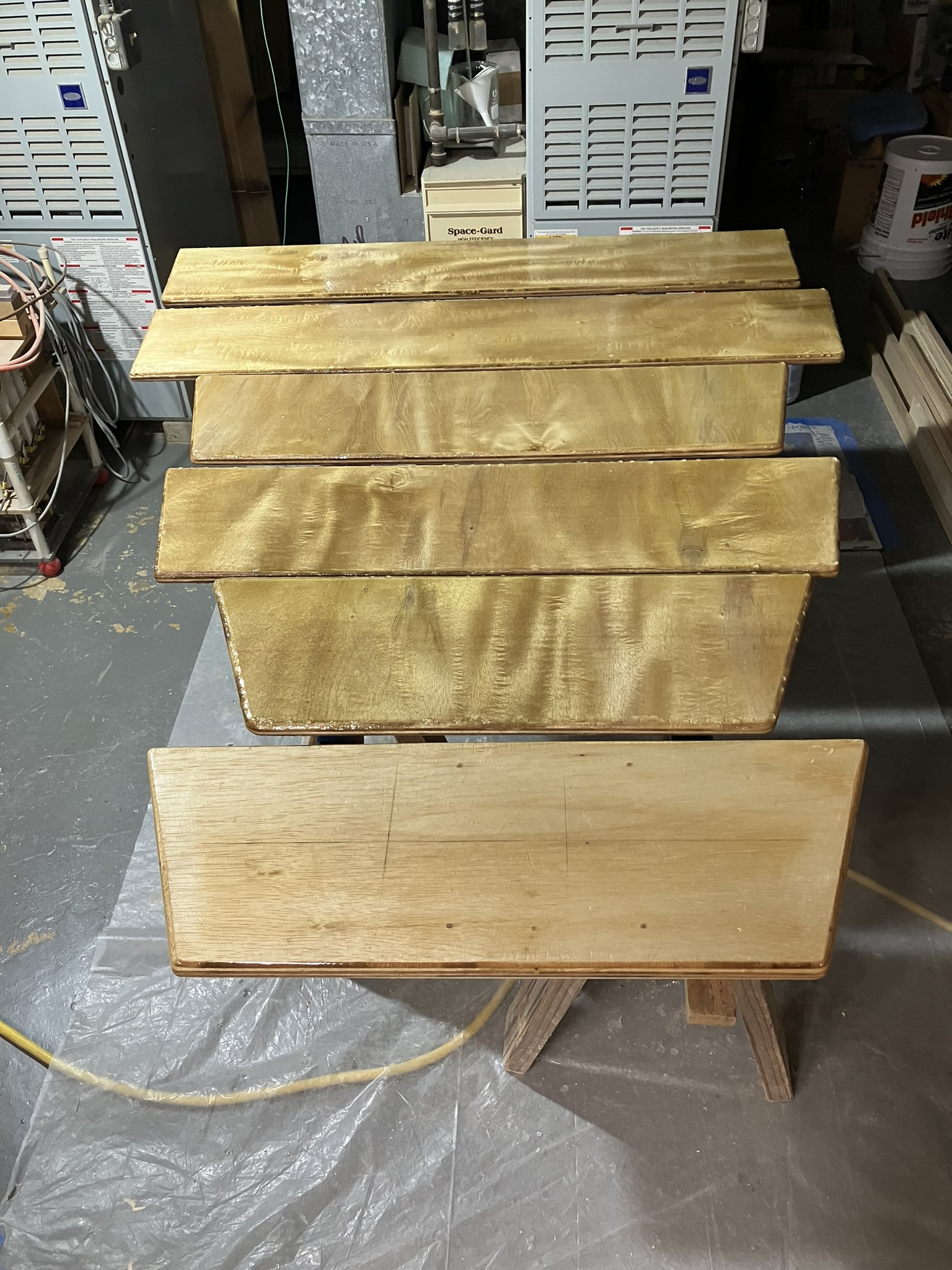

Epoxy Wet-Out

The fiberglass was wet out with epoxy.

A plastic spreader was used to force the fiberglass sheet tight against the wood substrate.

4 coats of epoxy were applied to achieve coverage of the glass cloth.

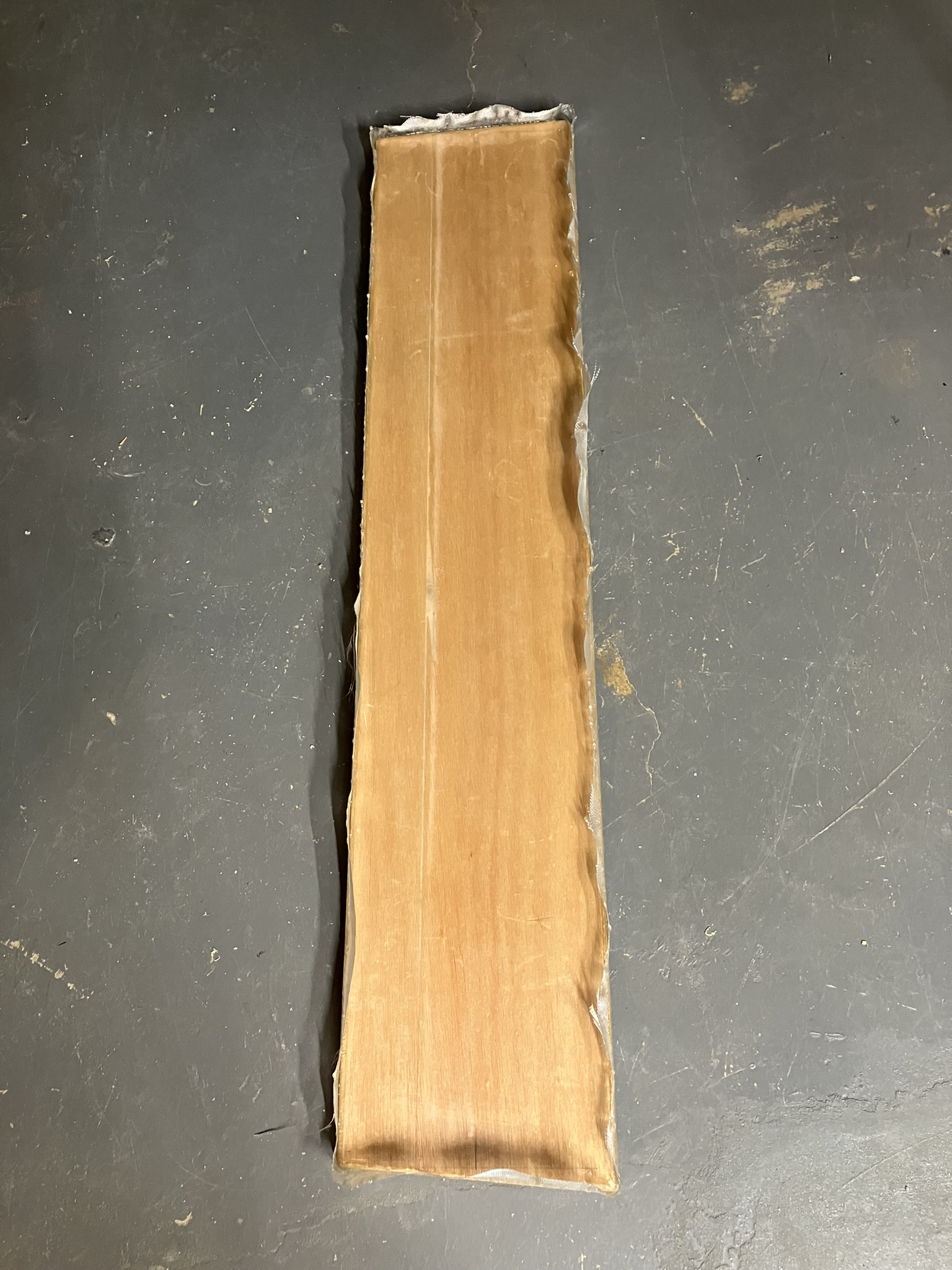

Seat Bottom

3 coats of Epoxy was applied to seat bottoms.

Seats Complete

Excess glass was trimmed and sanded.

Additional coats of epoxy were applied to edges to build up thickness.
